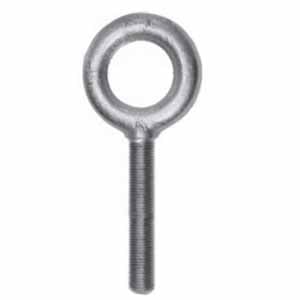

Eye Bolts For Lifting No Shoulder Fully Threaded Shank

Eye Bolts For Lifting No Shoulder Fully Threaded Shank

Eye Bolts For Lifting No Shoulder Fully Threaded Shank come in a variety sizes, materials, platings/coatings. Capacities listed are for vertical lifting only. These American Made No Shoulder (Plain) Eye Bolts should not be used in Angular lifts. See individual eye bolts for rating information.

Key Features

Other No Shoulder Eyebolts

Eye Bolts For Lifting No Shoulder Non-Threaded Shank Eye Bolts with Nut For Lifting No Shoulder Partially threaded Shank

Applications

  • The receiving hole should be counter-sunk and be free and clear of any debris to assure proper seating.
  • LOADS SHOULD ALWAYS BE ALIGNED TO THE PLANE OF THE EYE, not at an angle to the plane. A steel washer or spacer may be used in conjunction with Shoulder Eyebolts to attain proper load alignment. The thickness of the steel washer or spacer must not exceed one thread pitch.
  • Angular lifting should be avoided. Angular lifts significantly reduce rated capacities.
  • Check seating after applying an angular lift since the initial lift may cause the bolt to back away from the load. If such occurs, the Eyebolt should be unloaded & properly reseated.
  • Plain Eyebolt tapped holes are to be threaded for full length engagement of the Eyebolt.
  • Plain Eyebolts must have full thread shank engagement, allowing for one-half turn for proper eye-alignment to obtain rated capacities.
Filter Here
Bolt Diameter-TPI
Material
Plating/Coating
ID
Eye O.D.
Shank Length
Thread Length
Rated Capcity lbs.
