Cement Board

selfdrilling
pointruspert
spoonpoint
ruspertcoating

Phillips Wafer Head w/Nibs, Self-Drilling, Ruspert Coating

  • Ceramic coating provides protection from corrosion
  • Designed to work with all backer boards
  • Nibs under head clamp board firmly
  • Meets F.I.P.-1000.7 for torsional strength & drill speed
Installation
Attaches wood or metal to concrete, brick, cement block or masonry.
flathead
A standard screw gun with torque limiting nose piece set at a maximum of 2500 RPM drive speed recommended. Use a #2 reducedPhillips Drive bit. Do not over torque as it can cause the head to snap or stripping of the recess. Installed fasteners must penetrate aminimum of three full threads beyond the metal structure.

Phillips Wafer Head w/Nibs, Hi-Low, Sharp Point, Ruspert Coating

  • Ceramic coating provides protection from corrosion
  • Designed to work with all backer boards
  • Nibs under head clamp board firmly
Installation
Attaches wood or metal to concrete, brick, cement block or masonry.
flathead
A standard screw gun with depth sensitive nose piece set at a maximum of 2500 RPM drive speed recommended. Use a #2 reducedPhillips drive bit. Fastener is properly installed when head sits flush with the work surface. Do not countersink. Do not over torque as itcan cause the head to snap or stripping of the recess. Installed fasteners must be embedded into wood substrate a minimum of 1/2”.

Phillips Wafer Head w/Nibs, Hi-Low, Spoon Point, Ruspert Coating

  • Ceramic coating provides protection from corrosion
  • Designed to work with all backer boards
  • Nibs under head clamp board firmly
Installation
Attaches wood or metal to concrete, brick, cement block or masonry.
flathead
A standard screw gun with a depth sensitive nose piece and a #2 reduced Phillips drive bit set at a maximum of 2500 RPM drive speedrecommended. Fastener is properly installed when head sits flush with the work surface. Do not countersink screws. Do not over torqueas it can cause the head to snap or damage to the work surface. Installed fasteners must be embedded into wood substrate a minimumof 1/2” or penetrate a minimum of three full threads beyond the metal structure.

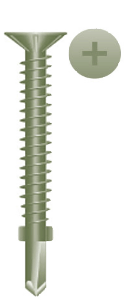

Phillips Flat Head w/Nibs and Wings, Self-Drilling, Ruspert Coating

  • Ceramic coating provides protection from corrosion
  • Wings ream hole in board preventing “jacking action”
  • Nibs under head clamp board firmly
  • Meets F.I.P.-1000.7 for torsional strength & drill speed
Installation
Attaches wood or metal to concrete, brick, cement block or masonry.
flathead
A standard screw gun with torque limiting nose piece set at a maximum of 2500 RPM drive speed recommended. Use a #2 reducedPhillips Drive bit. Do not over torque as it can cause the head to snap or stripping of the recess. Installed fasteners must penetrate aminimum of three full threads beyond the metal structure.
